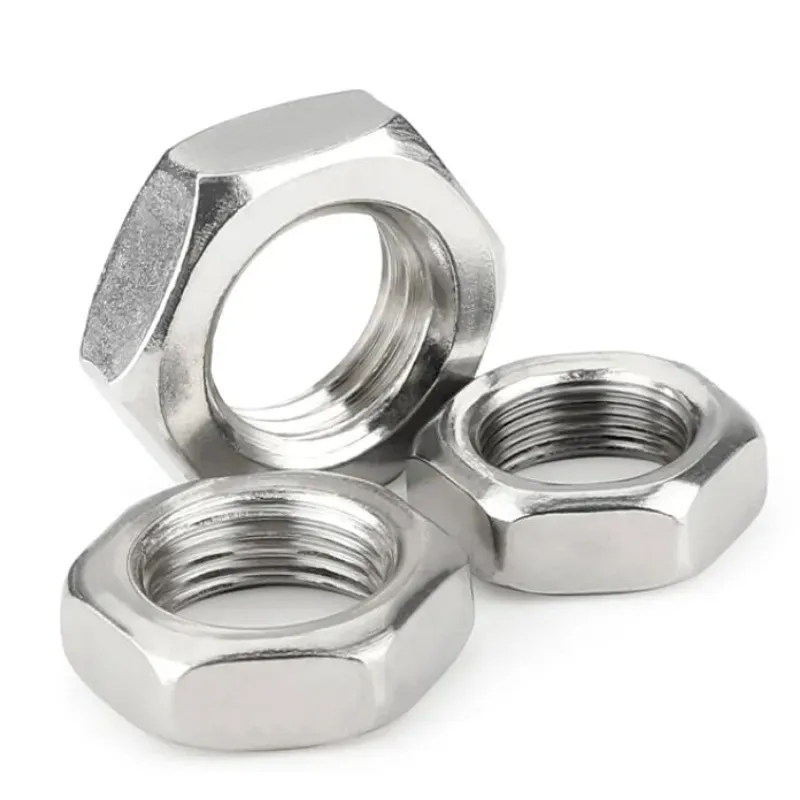

Thin / Jam Nut

Product Dimensions

ParameterSpecification
Product TypeThin Nut / Jam Nut
Size RangeM2 – M48 (custom sizes available)
Material OptionsStainless Steel, Carbon Steel, Alloy Steel, Brass
StandardsDIN 439, ISO 4035, BS, ASTM
Surface FinishZinc Plated, Nickel Plated, Black Oxide, Hot-dip Galvanized

Industrial Applications

Thin / Jam Nuts are widely used in:

  • Electrical panels and assemblies: Useful in compact spaces where standard nuts cannot fit.
  • Automotive industry: Act as lock nuts for securing fasteners against vibration in engines and machinery.
  • Construction and steel structures: Provide secondary locking in structural joints and bolted frameworks.
  • Machinery and equipment: Enhance resistance against loosening in rotating or vibration-prone environments.
  • Furniture and consumer products: Offer slim fastening solutions without increasing bulk.

Product Description

Thin or Jam Nuts are designed with approximately half the thickness of a standard hex nut. Their primary function is to act as a locking nut by being tightened against a standard nut to lock the pair in place. This double-nut method prevents self-loosening caused by vibration or movement. Apart from locking applications, thin nuts are also used in assembly conditions with limited space, where a full-size nut cannot be accommodated. Available in various finishes and materials, jam nuts are highly versatile for both heavy-duty and light applications.

Product specifications

  • Nut Type: Low-profile hexagonal nut (half height of standard hex nut)
  • Size Range: Metric M2 – M48; inch sizes available upon request
  • Thread Type: ISO metric coarse/fine, UNC/UNF, BSW, BSF; custom threading on request
  • Material Options: Stainless steel (A2, A4), mild steel, carbon steel, alloy steel, brass
  • Surface Finish: Zinc plated, nickel plated, galvanized, black oxide, chrome plated, plain finish
  • Strength Class: Available in property classes 4, 6, 8, 10; ASTM Grade A and Grade 2 available
  • Tensile Strength: Up to 800–1,000 MPa depending on material and class
  • Hardness: Rockwell C19–C38 for alloy steel grades
  • Operating Temperature: -50°C to +400°C depending on finish and base material
  • Corrosion Resistance: High when made from stainless steel or with protective coatings
  • Applications: Used in lock nut combinations, limited-space installations, and vibration-prone connections
  • Standards/Compliance: DIN 439, ISO 4035, BS 3692 (thin series), ASTM A563
  • RoHS/REACH Compliance: Available for stainless steel and coated variants
