Allen Bolts

Product Dimensions

Parameter	Specification
Product Type	Allen Bolt / Socket Head Cap Screw
Drive Type	Internal Hex (Allen Key)
Size Range	M3 – M36 (custom sizes available)
Material Options	Alloy Steel, Stainless Steel, Carbon Steel
Standards	DIN 912, ISO 4762, BS, ASTM
Surface Finish	Zinc Plated, Black Oxide, Hot-dip Galvanized, Nickel Plated

Industrial Applications

Electrical Panels and Assemblies: Engineered as precision Allen head bolts, these fasteners deliver secure fastening in tight spaces with a clean, flush finish.
Automotive Industry: A trusted choice in engines, suspensions, and high-stress joints — heavy-duty Allen bolts stand up to the most demanding performance requirements.
Aerospace and Defense: As a leading Allen head bolts manufacturer, we supply critical assemblies where a superior strength-to-weight ratio is non-negotiable.
Machinery and Equipment: These fasteners are ideal for precision components and create secure, vibration-damping connections in a variety of industrial systems.
Furniture and Consumer Goods: High-strength Allen head bolts provide neat aesthetics through concealed fastening, combining function with a refined finish.

Product Description

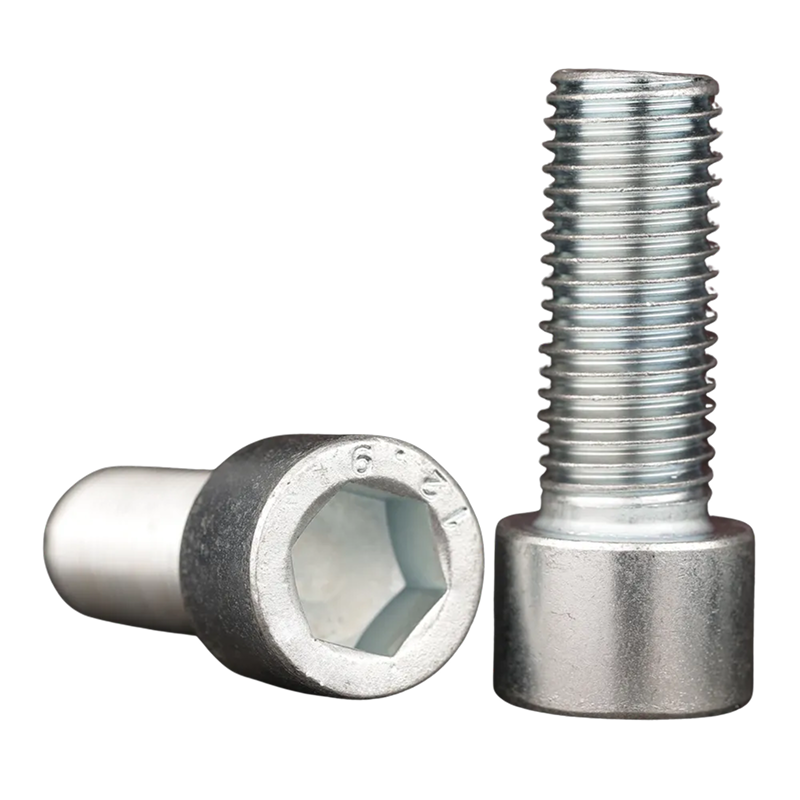

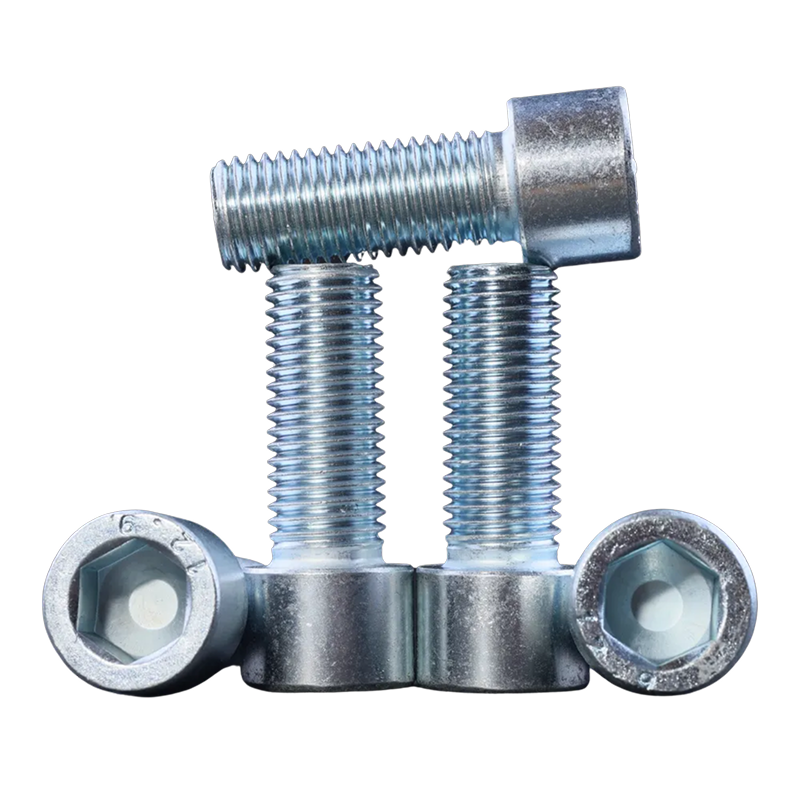

Stainless Allen head bolts feature a smooth cylindrical head and an interior hex socket for use with an Allen key in order to apply torque to the bolt without harming the Allen key or the bolt. These secure fastening Allen bolts are recommended where space is at a premium, allowing recessed or countersunk installation and providing superior clamping force. These fasteners come in various materials, including high-tensile alloy steel for demanding applications and stainless steel for applications where corrosion resistance is a concern, and are highly appreciated for their strength, accuracy, and good looks.

Product specifications

Head Type: Cylindrical (socket head cap screw design)
Drive Type: Internal hex socket (Allen key)
Size Range: Metric M3 – M36; lengths from 10 mm up to 300 mm (custom available)
Thread Type: ISO metric coarse/fine, UNC/UNF, other standards on request
Material Options: High-tensile alloy steel (grades 8.8, 10.9, 12.9), stainless steel (A2, A4), carbon steel
Surface Finish: Black oxide, zinc plating, hot-dip galvanization, nickel plating, chrome plating
Tensile Strength: Up to 1,220 MPa depending on grade and material
Shear Strength: ~60% of tensile rating (varies with material class)
Head Dimensions: Compact cylindrical design allows use in countersunk or flush assemblies
Torque Capacity: Higher torque application with Allen key reduces risk of cam-out compared to slotted drives
Operating Temperature: -50°C to +400°C (material dependent)
Corrosion Resistance: Excellent in stainless steel and plated versions, ideal for outdoor and marine use
Applications: Automotive, aerospace, machinery, construction, furniture, consumer products
Standards/Compliance: DIN 912, ISO 4762, BS 4168, ASTM A574
RoHS/REACH Compliance: Available for stainless and coated options
