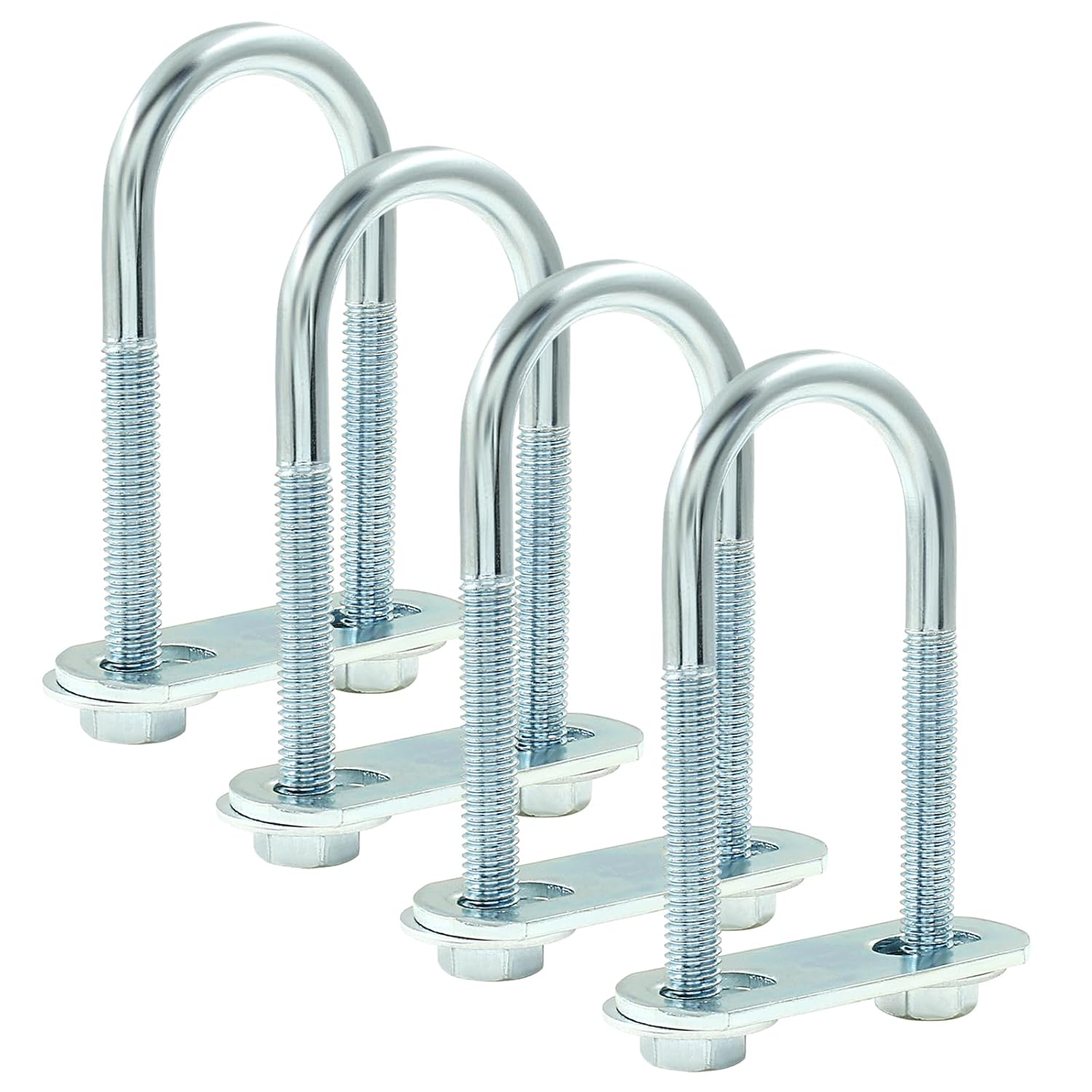

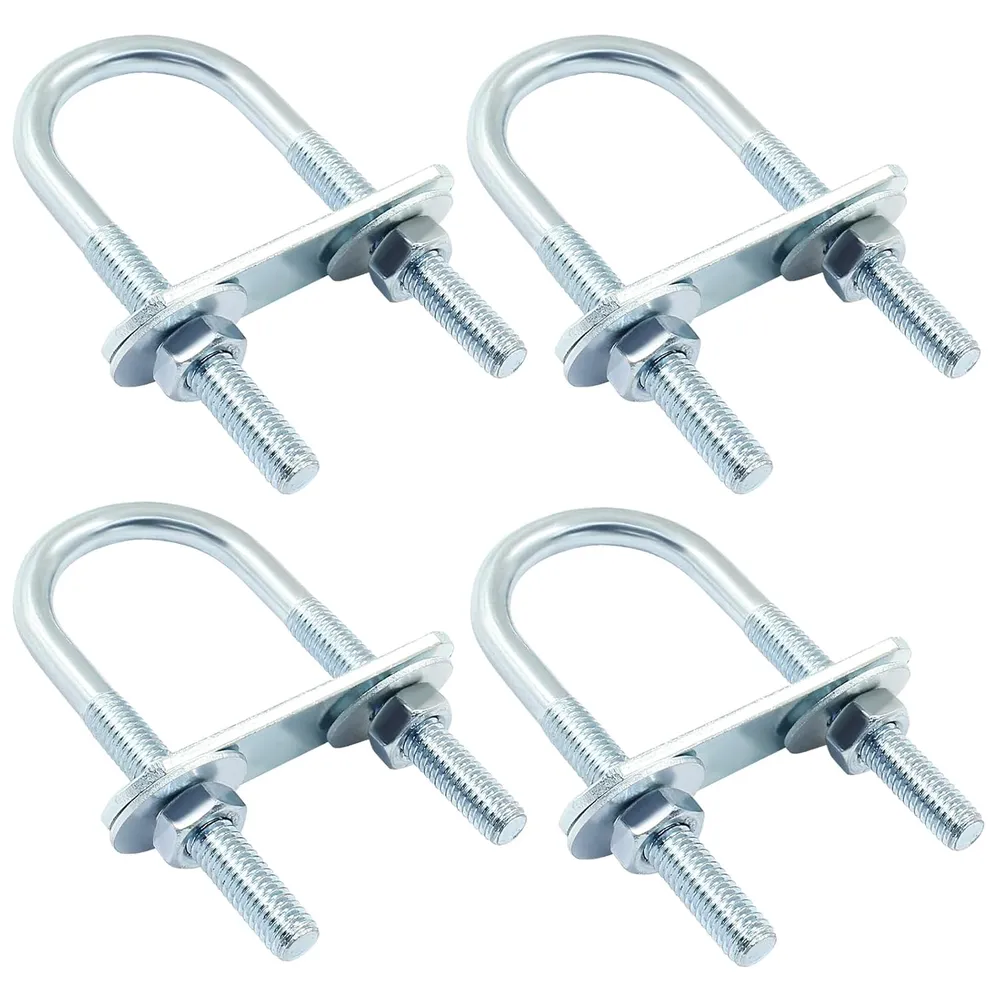

U Bolts
U Bolts are versatile fasteners shaped like the letter "U" with threaded ends, designed to clamp pipes, tubes, or round bars to surfaces or to secure cables and structural elements. They provide high grip strength and stability in both industrial and construction applications.
| Parameter | Specification |
|---|---|
Product Type |
U Bolt |
Size Range |
M6 – M48 (custom sizes available) |
Material Options |
Stainless Steel, Mild Steel, Galvanized Steel, Alloy Steel |
Standards |
DIN, ISO, ASTM, BS |
Surface Finish |
Hot-dip Galvanized, Zinc Plated, Polished Stainless, Black Oxide |
Industrial Applications
U Bolts are widely used in:
- Electrical panels and assemblies: Fasten and secure conduit pipes or cables in electrical installations.
- Automotive industry: Hold leaf springs and exhaust systems firmly in position.
- Marine industry: Secure ropes, rigging, and pipeline supports in corrosive environments.
- Construction and civil engineering: Used in scaffolding, pipeline supports, and structural frameworks.
- Oil, gas, and power plants: Provide pipe support and stability in high-pressure environments.
Product Description
U Bolts are bent fasteners primarily used to secure cylindrical objects to a base. Their U-shaped design with threaded ends allows them to be tightened in place using nuts and washers, ensuring firm clamping force. Manufactured in standard and custom sizes, U Bolts are suitable for both light-duty and heavy-duty applications. With availability in multiple materials and surface coatings, they withstand diverse working environments, including marine, automotive, and industrial applications where strength and corrosion resistance are critical.
Product specifications
- Shape Options: U shape with round, square, or semi-circular bends
- Thread Type: Metric ISO coarse/fine, UNC/UNF on request
- Size Range: M6 – M48; custom diameters and lengths available
- Material Options: Stainless steel (304/316 grades), mild steel, carbon steel, alloy steel
- Surface Finish: Hot-dip galvanizing, electro-galvanizing, zinc plating, polished stainless, black oxide
- Load Capacity: Ranging from light clamping loads to heavy-duty structural pipe supports
- Bend Radius: Standard and custom bend radii available to fit different pipe diameters
- Tensile Strength: Up to 1,000 MPa depending on grade and material
- Shear & Clamp Strength: Provides strong holding force when used with matched nuts and washers
- Operating Temperature: -40°C to +400°C depending on material and finish
- Corrosion Resistance: High resistance in stainless steel and galvanized variants, suitable for outdoor/marine use
- Application Flexibility: Used in static or vibration-prone environments (automotive, marine, power plants)
- Standards/Compliance: Manufactured to DIN, ISO, ASTM, BS standards
- RoHS/REACH Compliance: Available to meet environmental and safety standards
