"T" Head Bolts

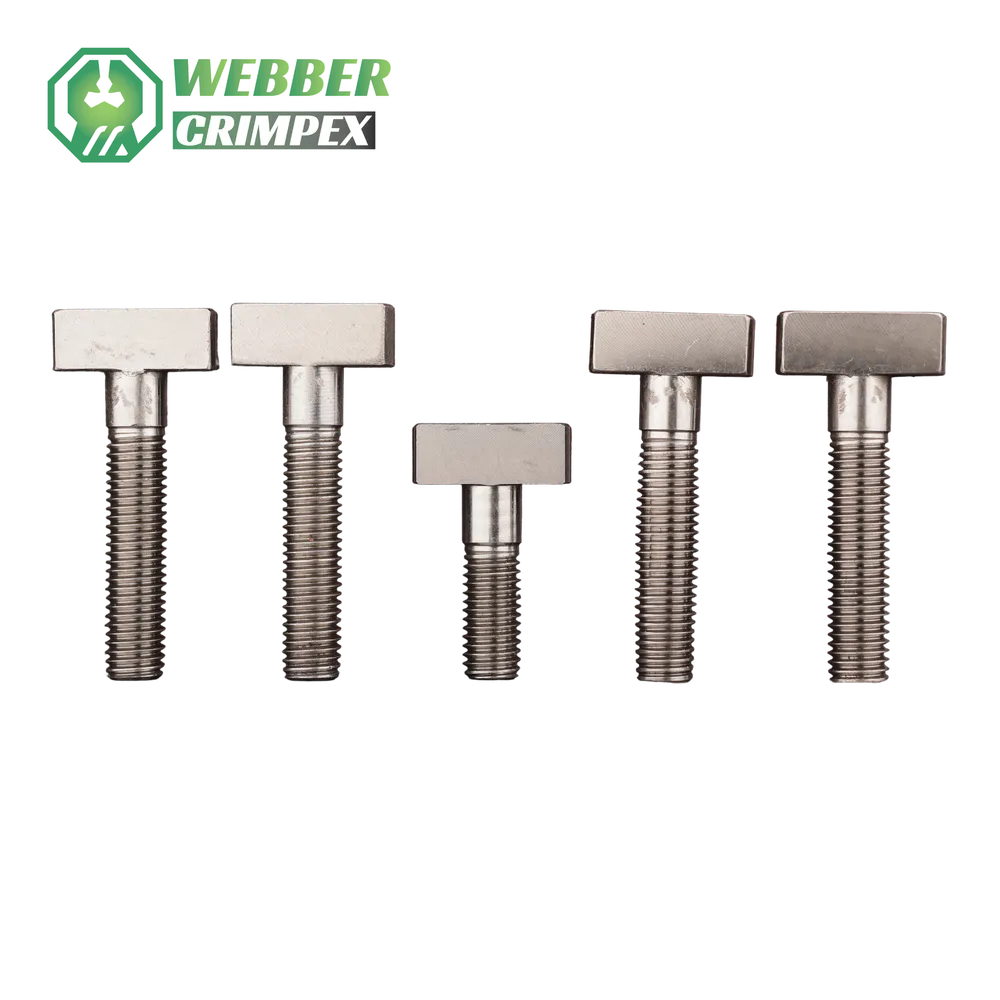

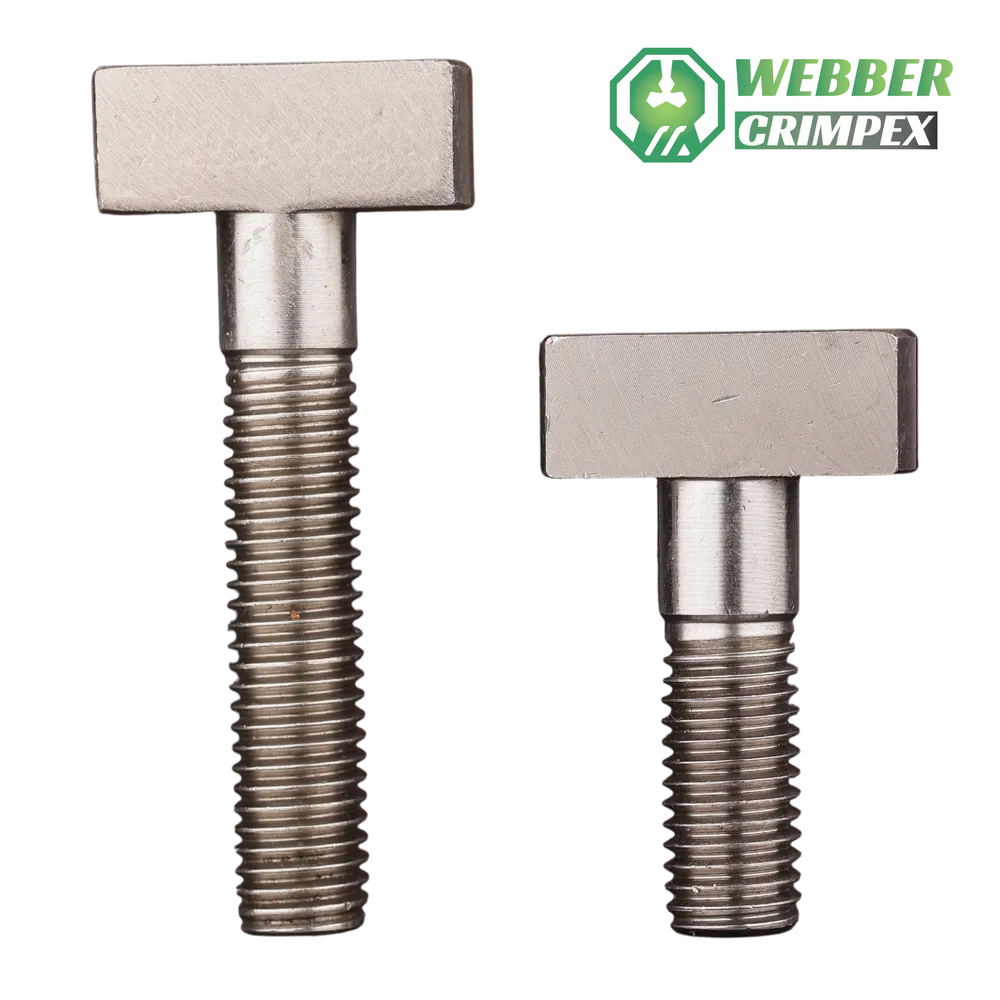

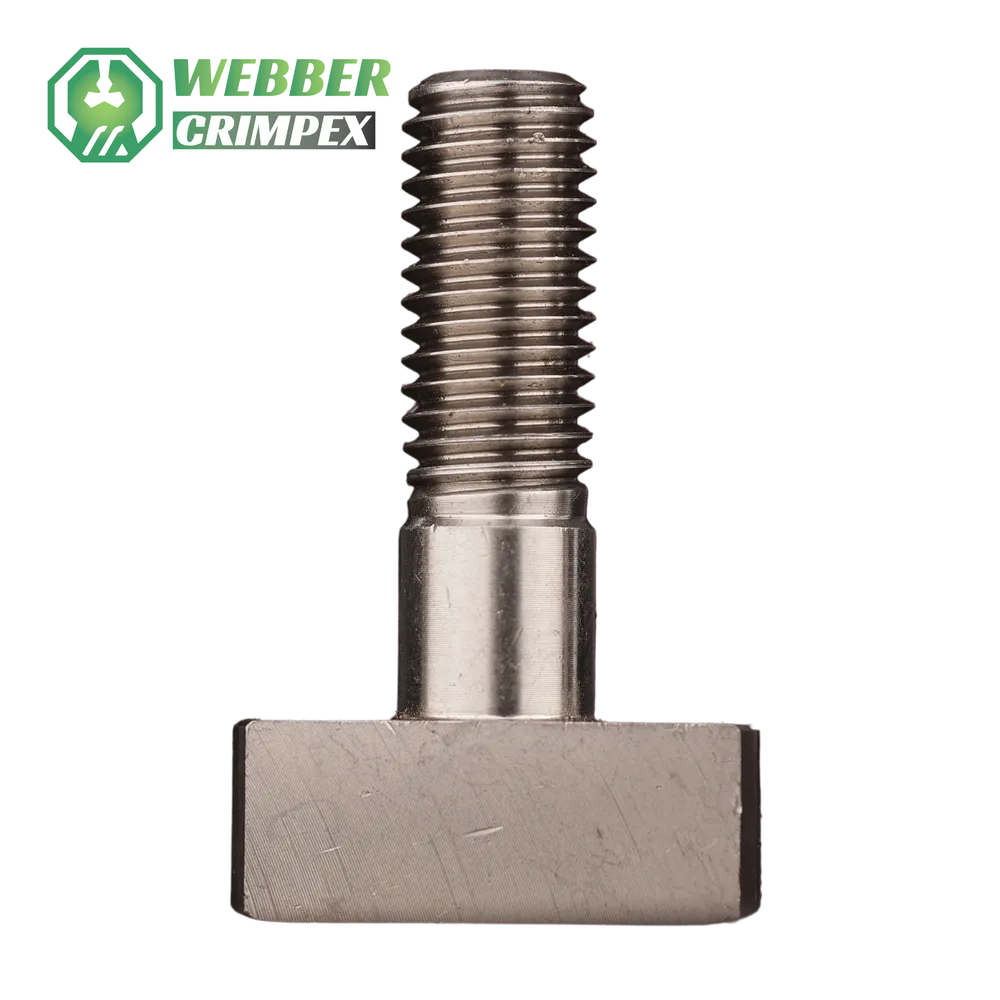

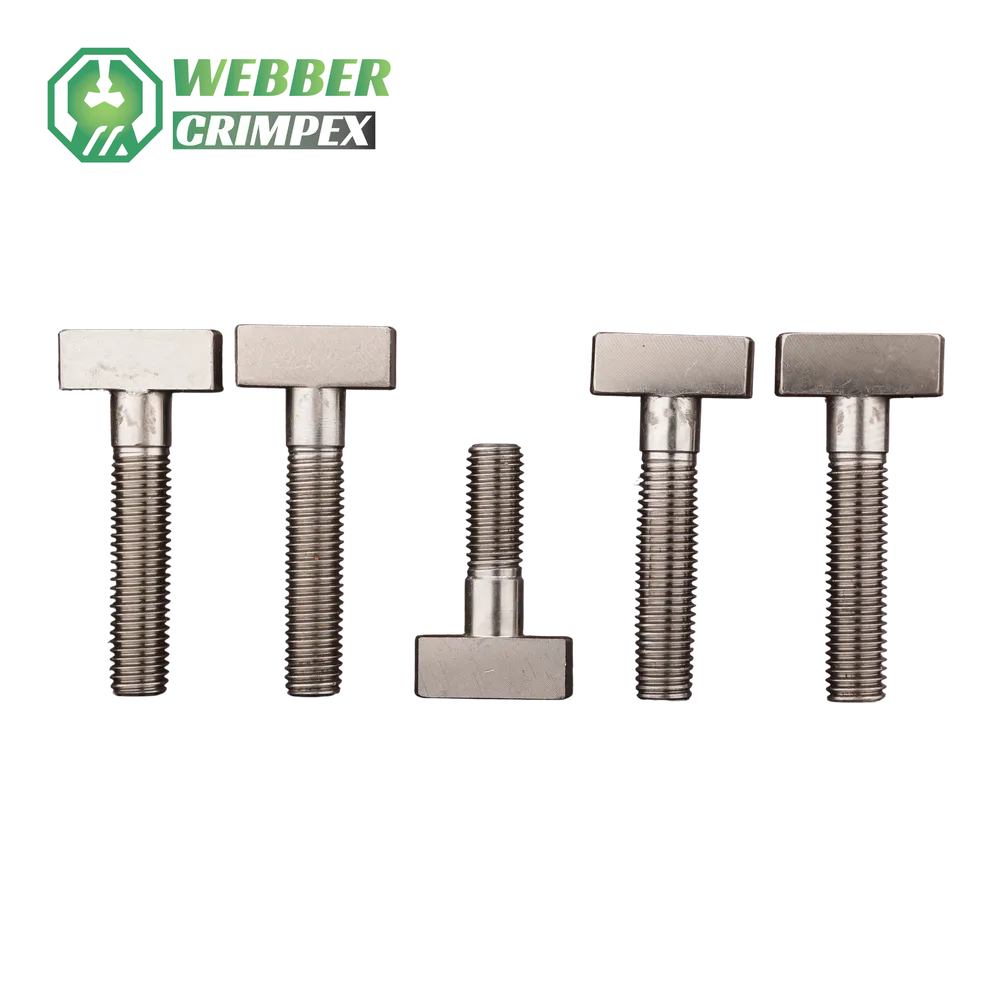

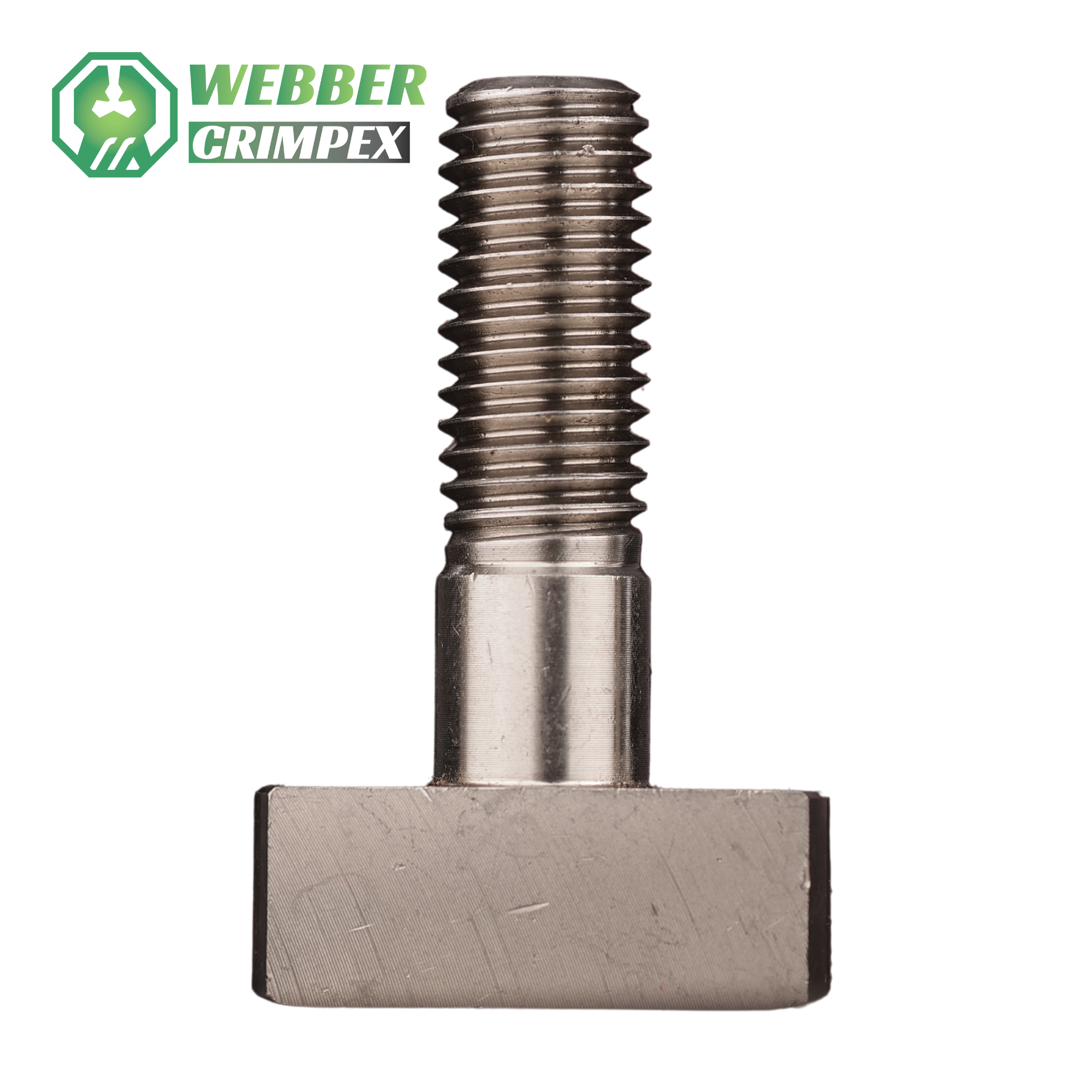

T Head Bolts, also known as T-slot bolts, feature a head shaped like the letter "T" that fits securely into slots, providing a firm and adjustable fastening solution. They are typically used in machine tool tables, construction systems, and assemblies where positioning flexibility is required.
| Parameter | Specification |
|---|---|
Product Type |
T Head Bolt / T-Slot Bolt |
Head Type |
T-shaped head for slot fitting |
Size Range |
M6 – M36 (custom sizes available) |
Material Options |
Carbon Steel, Stainless Steel, Alloy Steel |
Standards |
DIN 787, ISO, BS, ASTM |
Surface Finish |
Zinc Plated, Black Oxide, Hot-dip Galvanized, Plain Finish |
Industrial Applications
T Head Bolts are widely used in:
- Electrical panels and assemblies: Allow slot-based fastening for adjustable mounting of components.
- Machinery and tool assemblies: Common in T-slot machine tool beds for clamping and positioning.
- Construction frameworks: Provide secure, adjustable fastening in metal frameworks and profiles.
- Automotive industry: Used in specialized assemblies requiring guided fastening in slots.
- Heavy equipment and structures: Ensure secure joints in vibration-prone environments where precise positioning is essential.
Product Description
T Head Bolts are designed with a distinctive T-shaped head that fits into pre-machined slots, preventing rotation and allowing easy adjustment of position before tightening. The slot-fitting design ensures strong clamping force while providing flexibility for repositioning and alignment. They are widely used in machinery, tooling systems, and modular framework structures where adaptability and strength are required. Manufactured in a variety of grades, sizes, and protective finishes, T Head Bolts combine precision, durability, and versatility for demanding industrial environments.
Product specifications
- Head Type: T-shaped head designed to lock into slots and prevent rotation
- Thread Type: ISO metric coarse/fine; UNC/UNF threading on request
- Size Range: Metric M6 – M36; inch series available on request
- Material Options: Stainless steel (304/316), carbon steel, alloy steel (8.8, 10.9 grades)
- Surface Finish: Zinc plating, manganese/phosphate coating, hot-dip galvanization, black oxide, plain finish
- Tensile Strength: Up to 1,000–1,200 MPa depending on material and grade
- Shear Strength: ~60% of tensile strength (material-dependent)
- Load Distribution: Provides strong, stable support by spreading load in the slot
- Applications in Jigs & Fixtures: Ideal for clamping, positioning, and modular assembly setups
- Operating Temperature: -50°C to +400°C depending on coating and base material
- Corrosion Resistance: Enhanced in stainless steel and coated finishes for outdoor/marine environments
- Applications: Machinery, tool beds, modular frames, electrical and industrial assemblies
- Standards/Compliance: DIN 787, ISO, BS, ASTM equivalents
- RoHS/REACH Compliance: Available for stainless variants and eco-friendly coatings
