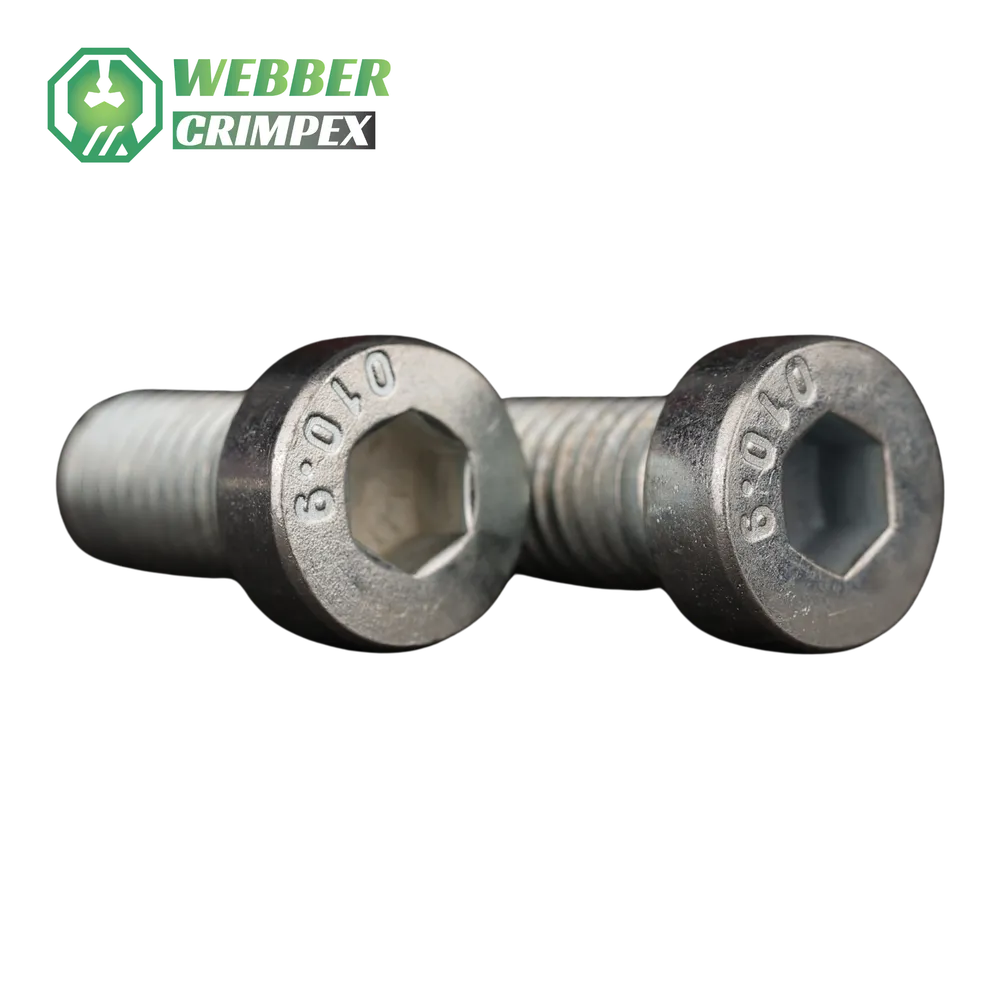

Cheese Head Screw
Cheese Head Screws are durable fasteners with a wide cylindrical head and deep drive slot, ensuring strong grip, easy installation, and a neat finish. Designed for precision and strength, they are ideal for industrial and engineering applications.
| Parameter | Specification |
|---|---|
Head Type |
Cylindrical Cheese Head |
Drive Type |
Slotted / Phillips |
Size Range |
M2 – M16 |
Material Options |
Stainless Steel, Mild Steel, Brass |
Standards |
DIN 84, DIN 85, ISO, BS, ANSI |
Surface Finish |
Zinc, Nickel, Black Oxide, Plain |
Ideal for usage in
Industrial Applications
Cheese Head Screws are widely used in:
- Electrical panels and assemblies: Fit in tight spaces and offer a deep slot for reliable driving without stripping.
- Automotive components: Ensure secure fastening of precision parts where both strength and aesthetics matter.
- Machinery and equipment: Provide stable joints that withstand high loads and vibrations.
- Construction fittings and hardware: Ideal for casings, enclosures, and structural elements needing a neat finish.
- Aerospace and defense systems: Deliver high-strength fastening with durability under extreme conditions.
Product Description

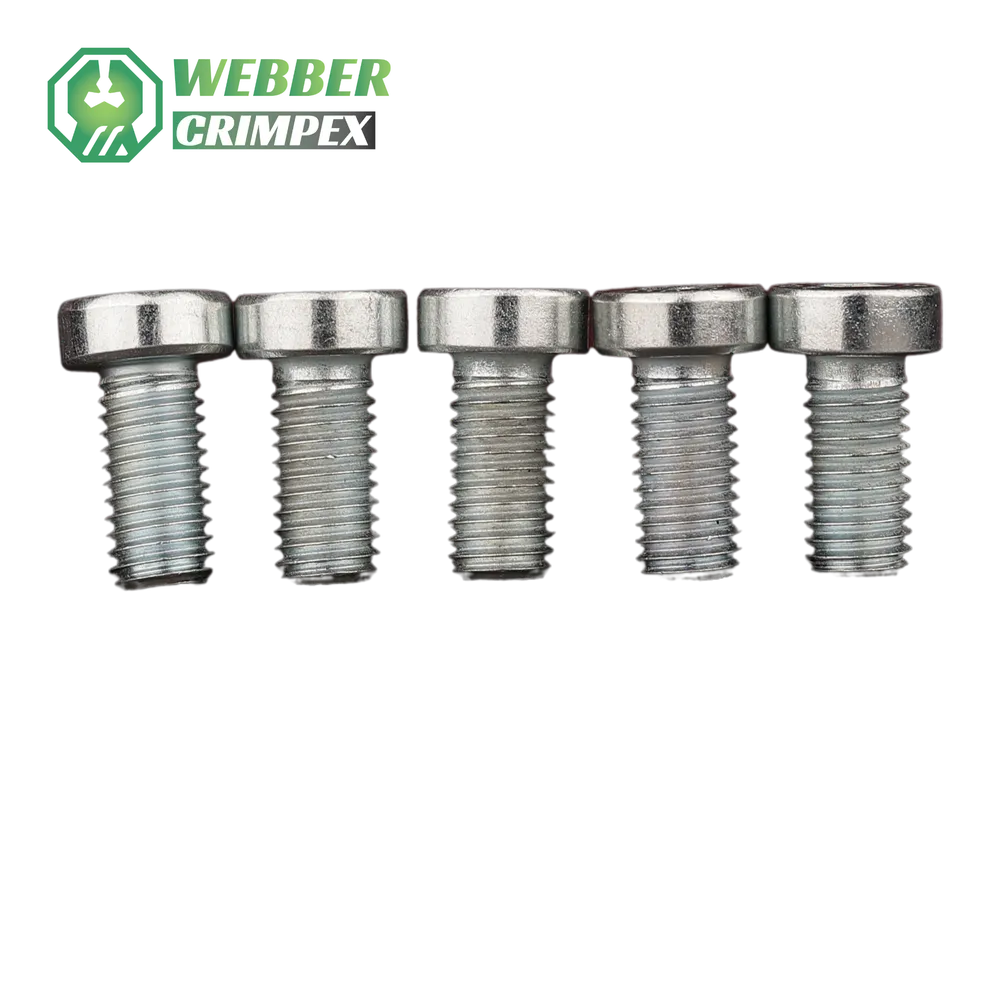

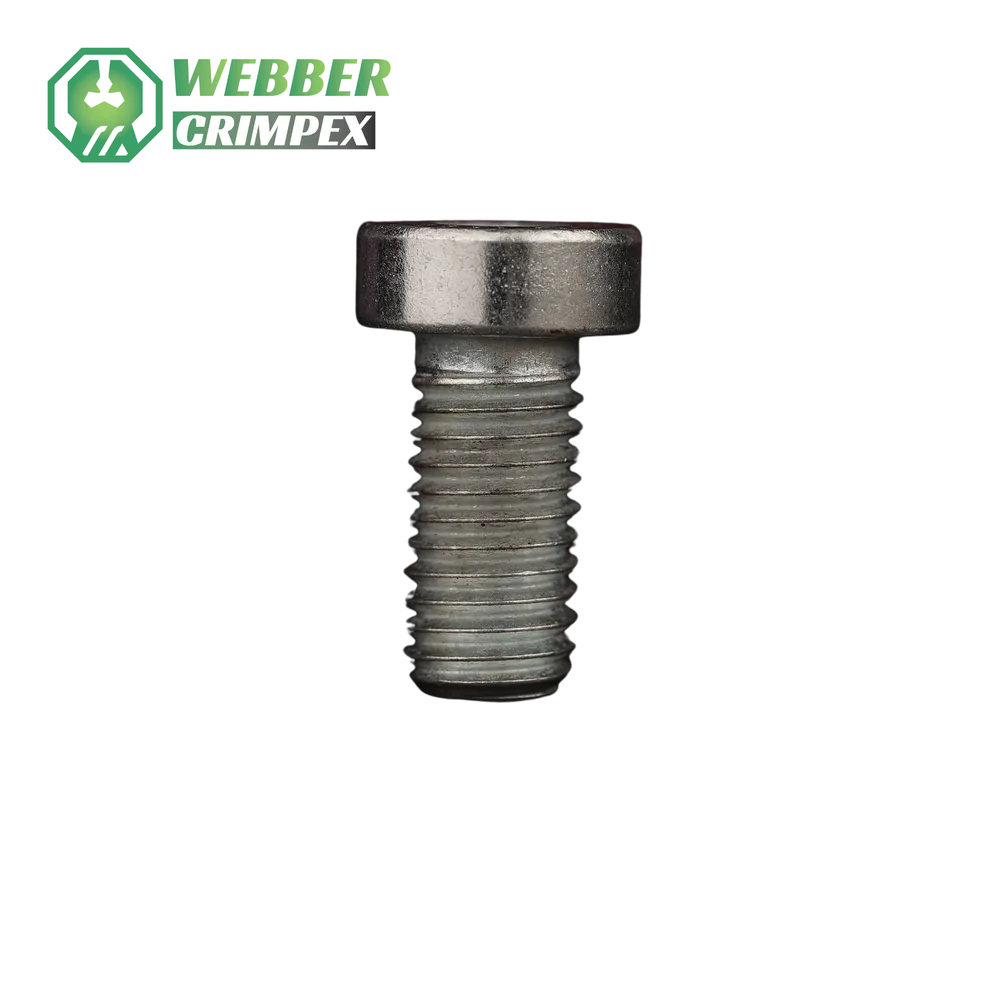

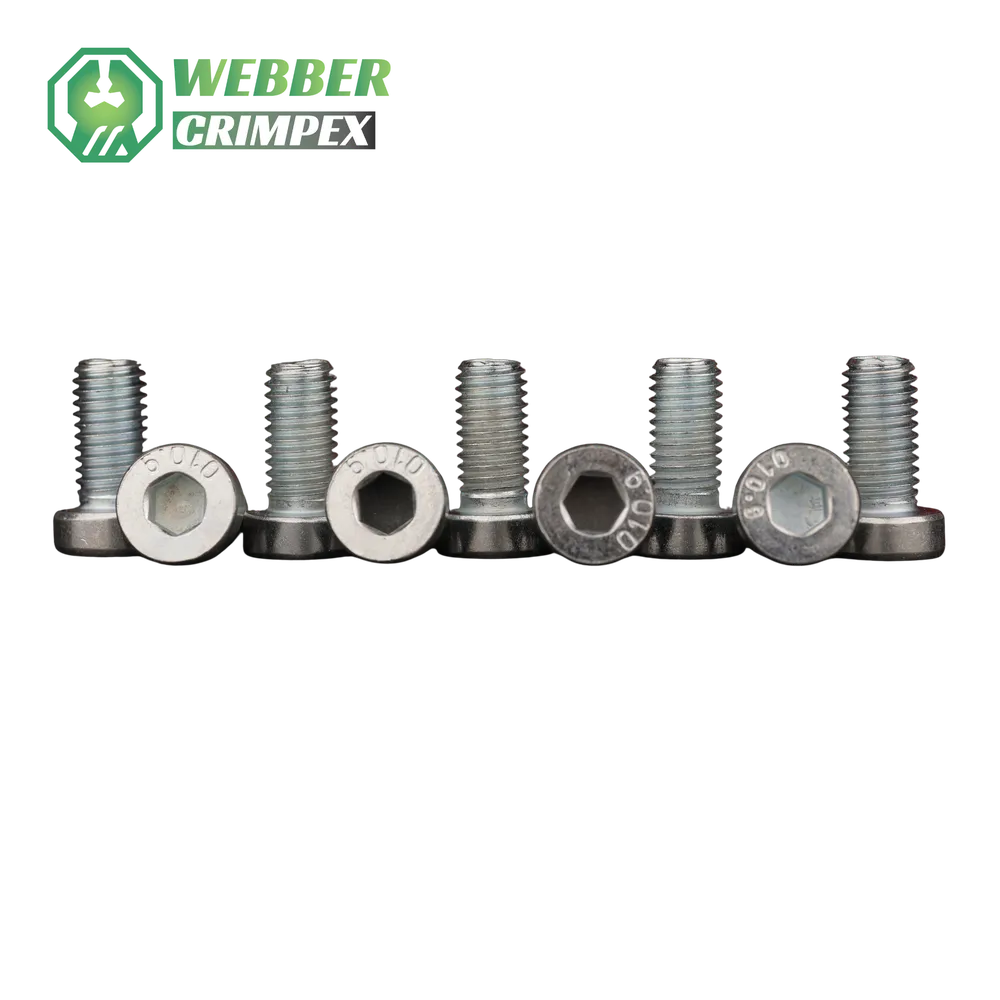

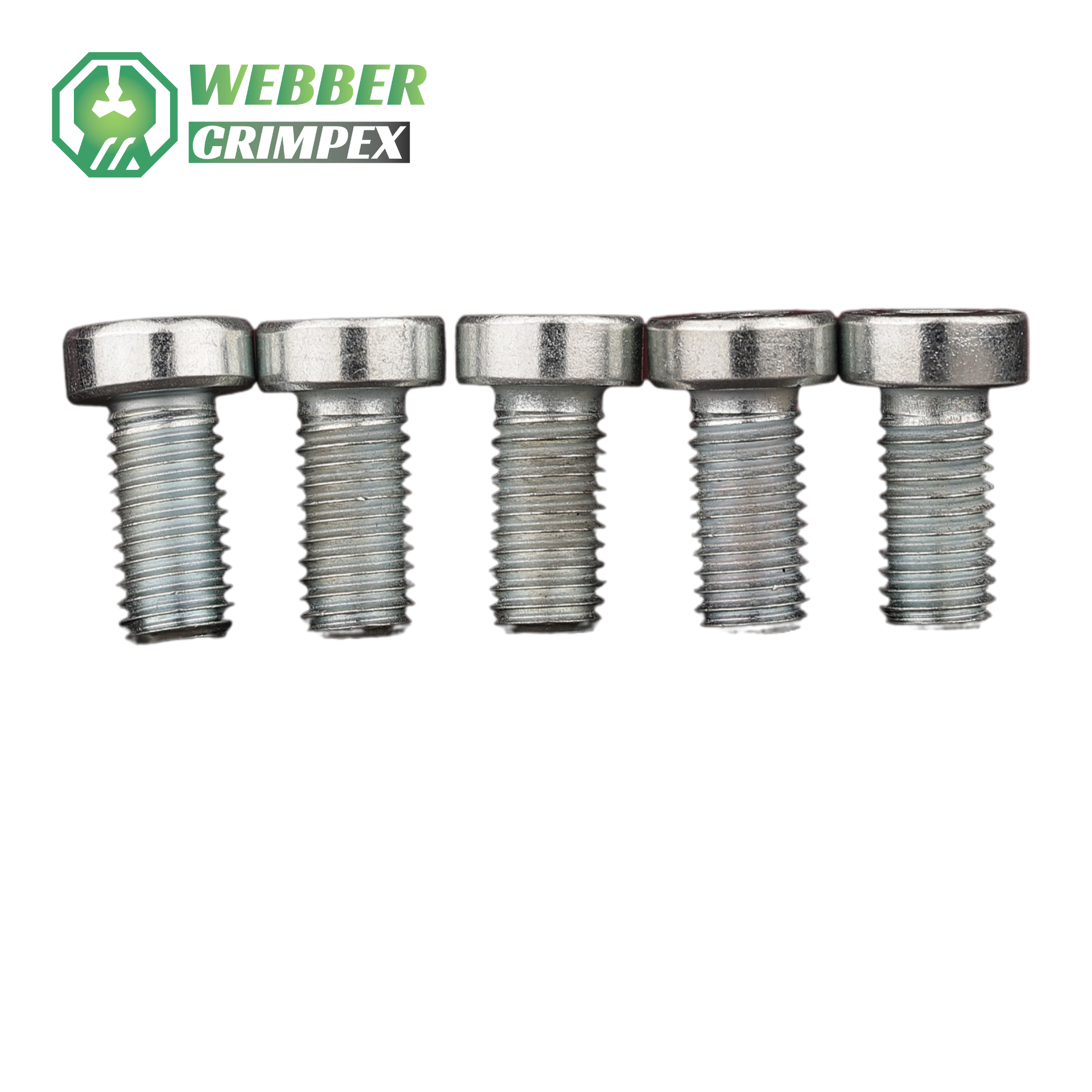

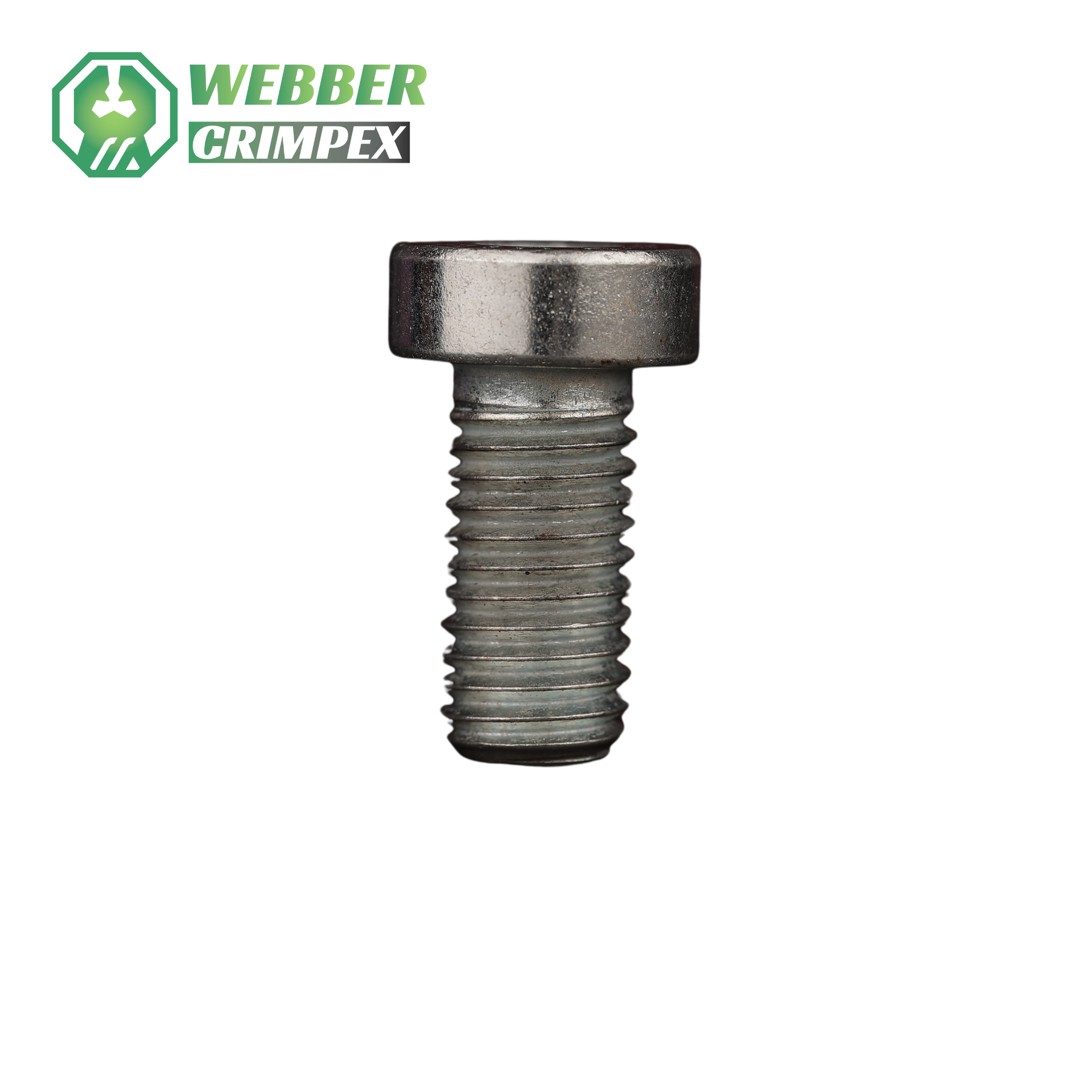

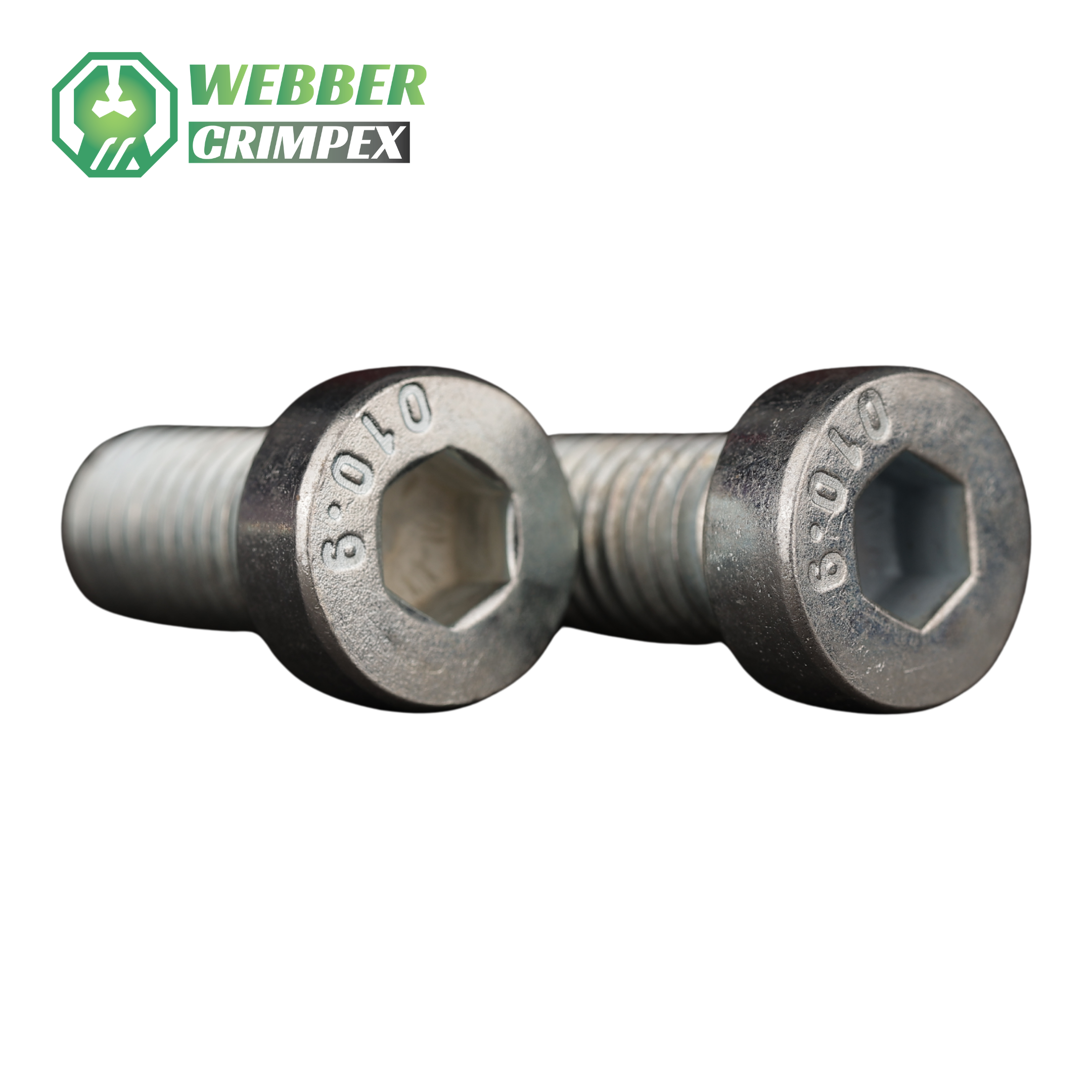

The Cheese Head Screw is distinguished by its cylindrical head design, resembling a wheel of cheese, offering a larger bearing area than many other screws. This shape, combined with deep slots, allows secure tightening and reduced tool slippage. Available in multiple sizes, materials, and protective coatings, these screws balance strength, corrosion resistance, and visual neatness—making them versatile for both mechanical and aesthetic applications.
Product specifications
- Head Type: Cylindrical cheese head with deep drive slot
- Drive Type: Slotted, Phillips, or customized options
- Material Options: Stainless steel (A2/A4), mild steel, brass, alloy steel
- Size Range: Metric M2 to M16; custom dimensions on demand
- Thread Type: Machine screw thread (coarse and fine pitch, ISO metric)
- Head Height: Typically 0.5–0.6 times the nominal screw diameter
- Head Diameter: 1.6–2 times the nominal screw diameter (per DIN/ISO standards)
- Thread Tolerance: 6g (standard tolerance, others available on request)
- Surface Finish: Zinc plating, nickel plating, black oxide, chromium finish, plain
- Mechanical Class: 4.6, 8.8, 10.9, and 12.9 available
- Tensile Strength: Up to 1,000 MPa depending on grade and material
- Shear Strength: Approximately 0.6 × tensile strength (material dependent)
- Hardness: Vickers hardness up to HV 39–45 for stainless steel grades
- Operating Temperature: -50°C to +300°C (varies with material and coating)
- Corrosion Resistance: High when made of stainless steel or when coated
- Standards/Compliance: DIN 84, DIN 85, ISO 1207, BS 4183, ANSI standards
- RoHS/REACH Compliance: Available for specific coatings and materials
